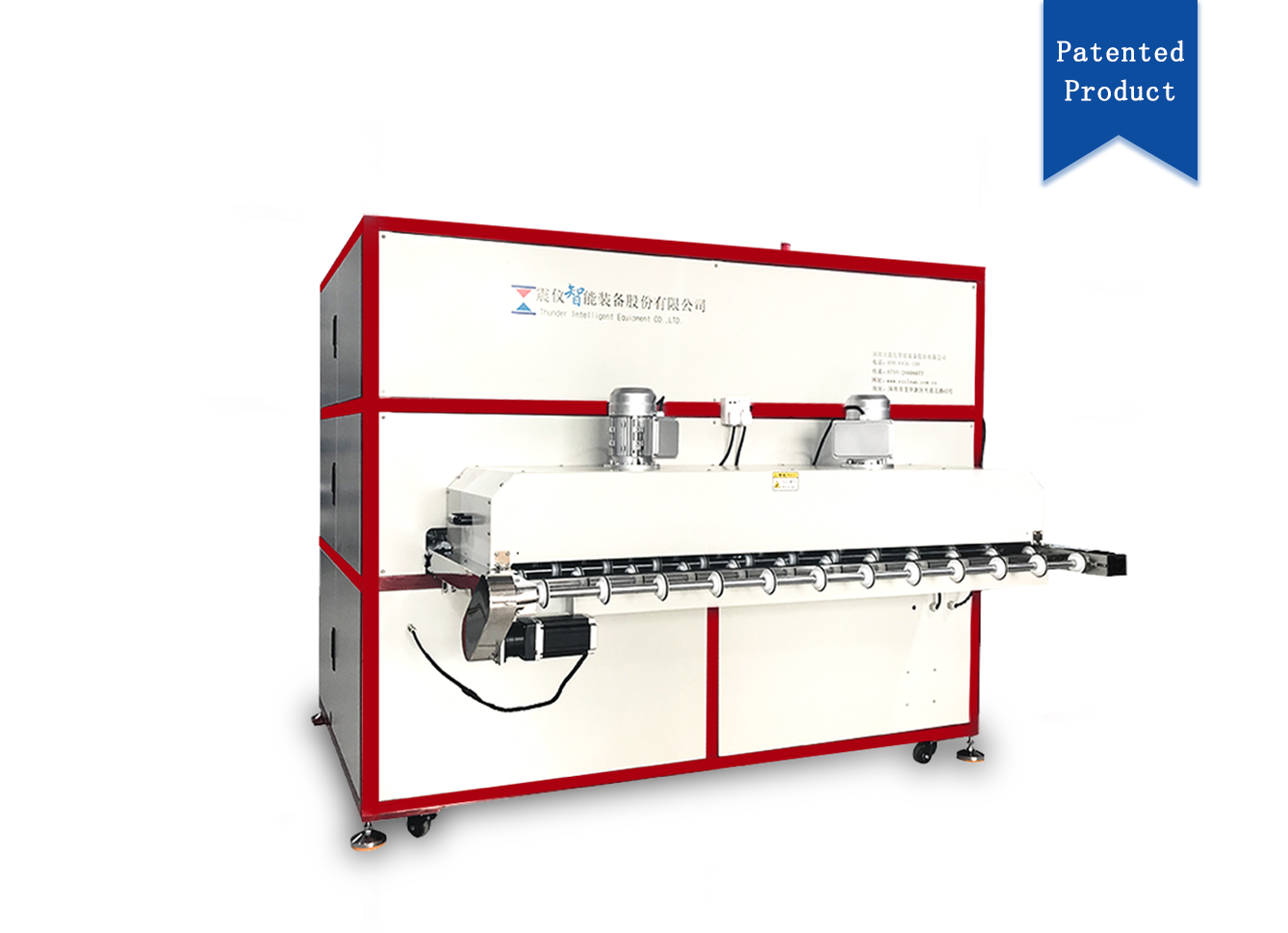

AB1003 glass protective oil spraying equipment is the third-generation protective ink spraying equipment of Seismic. It is suitable for the production of 2.0 2.5D 3D flat glass various optical lenses and high-end protective films.
AB-1003 glass protective oil spraying equipment is used in the third-generation protective ink spraying equipment of Zhenyi. It is suitable for the production of 2.0, 2.5D, 3D, flat glass, various optical lenses, and high-end protective films. It is scratch-resistant during the production process. Anti-base imprint and anti-abrasive powder wash clean, improve the straight-through rate of the product (the straight-through rate can reach 92% and above), cost-saving, simple process, is an ideal product to replace the protective film and printed UV protection, easy to clean, convenient and clean , No residue, no residue, protection solution cleaning (3%-5% alkaline solution 60s degumming, commonly used sodium hydroxide configuration, solution temperature 5-60 degrees, and then clean water with ultrasonic cleaning).
Features
1. Equipped with imported high-pressure precision atomizing nozzle.
2. The spraying is uniform, and the spraying thickness accuracy can reach ±2um.
3. XY axis precision servo drive shaft, motion parameters are programmable control.
4. With IR baking line, the baking temperature can reach ≤120°.
5. Quick dust removal, no dust design, absolutely environmentally friendly.
6. Roller conveyor line to achieve zero scratches on the glass.
7. The water circulation system effectively solves the problem of protecting ink odor and dust with high efficiency and environmental protection.
8. Automatic loading and unloading flip racks to solve the problem of placing large pieces of glass.
Application scenario
Applicable to: 2.0, 2.5D, 3D, flat glass, various optical lenses, high-end protective film production
Specializing in the production of anti-fingerprint oil, AF coating foundry, and plasma spraying equipment manufacturers
