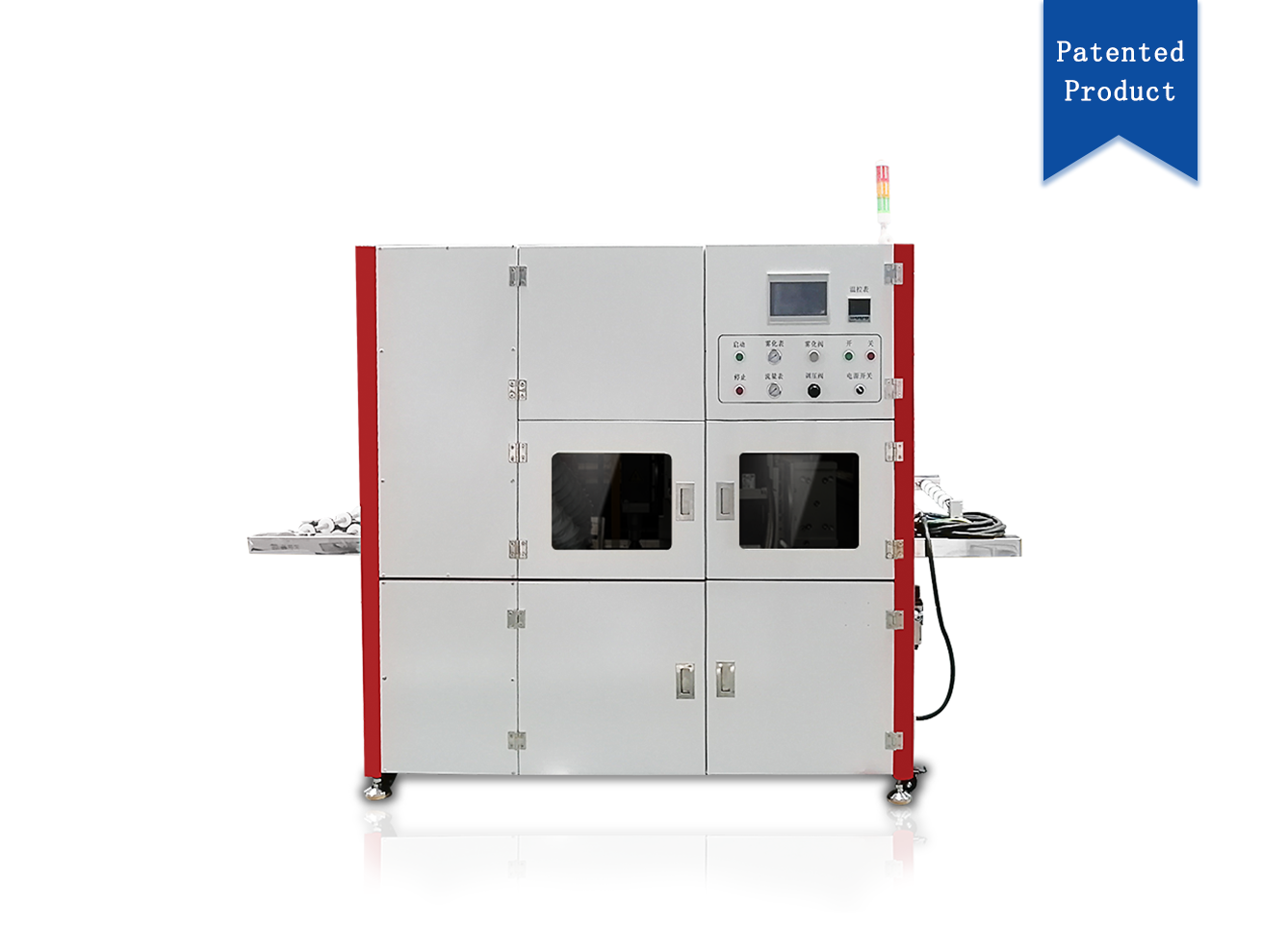

AB1003-1S water curtain type protective oil spraying machine is our third-generation protective oil spraying equipment. It is used in the production of 2.0, 2.5D, 3D, flat glass, various optical lenses, and high-end protective films. It is scratch-resistant during the production process. , Anti-base imprint and anti-abrasive powder washing, improve the straight-through rate of the product (the straight-through rate can reach 92% and above), spraying protection ink saves costs, the process is simple, and it is an ideal product to replace the protective film and UV protection. The cleaning is simple, convenient and clean, with no residue or residue. Protective solution cleaning (3%-5% alkaline solution 60s degumming, commonly used sodium hydroxide configuration, solution temperature 5-60 degrees, and then clean water with ultrasonic cleaning).
Compared with the second-generation spraying equipment, AB1003-1S adopts a water circulation evolution system, which is cleaner and more efficient: adopts a smaller diameter German high-pressure atomizing nozzle to make the film more uniform and delicate. The conveyor line adopts the roller mode, and the surface is equipped with a soft glue layer, which can better prevent the glass from scratching.
1. Equipment features and advantages
1. Equipped with high-pressure precision atomization nozzle imported from Germany, the atomization area is large, the spraying is more uniform and delicate, not easy to be blocked, and easier to clean.
2. XY axis precision servo drive shaft, motion parameters are programmable control.
3. With IR baking line, the baking temperature can reach ≤120°.
4. Quick dust removal, no dust design, absolutely environmentally friendly.
5. Roller conveyor line, the surface of the roller is equipped with a soft rubber layer to prevent glass scratches, so that the appearance of the product reaches zero scratches, and the conveyor line is resistant to high temperature and easy to clean, and has a longer life.
6. The water circulation system is equipped with a dust-removing and odor-removing water tank, which effectively solves the problem of protecting ink from peculiar smell and dust.
7. Automatic loading and unloading flip rack to solve the problem of placing large pieces of glass.
8. The water tank has a high and low liquid level prompt function, and the water level automatically alarms.

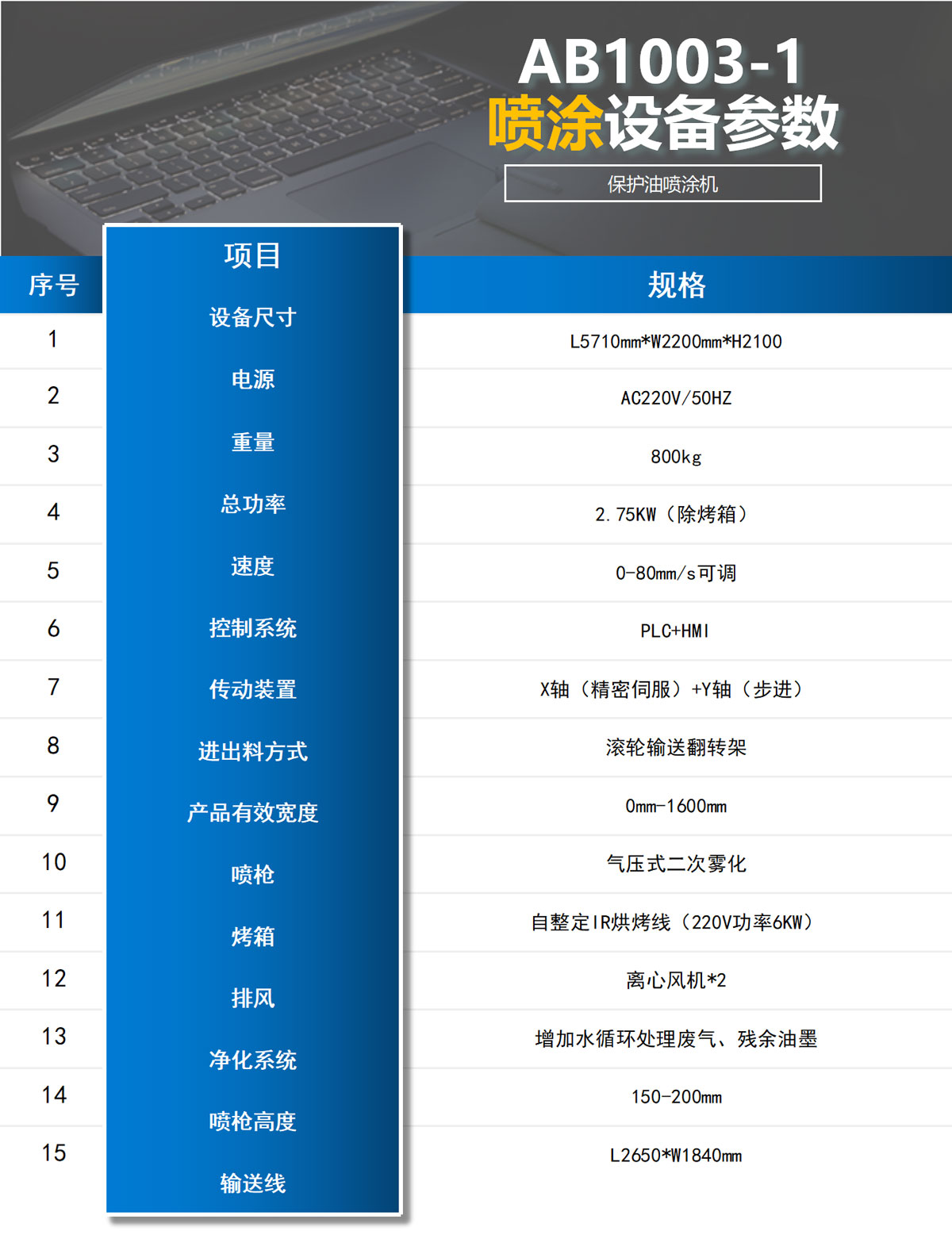

Protective oil spraying machine-AB1003-1S product performance parameters:
AB1003-1S protective oil spraying machine equipment work process: loading-raw material spraying-baking-cutting-CNC-scanning-unwashing-ultrasonic
