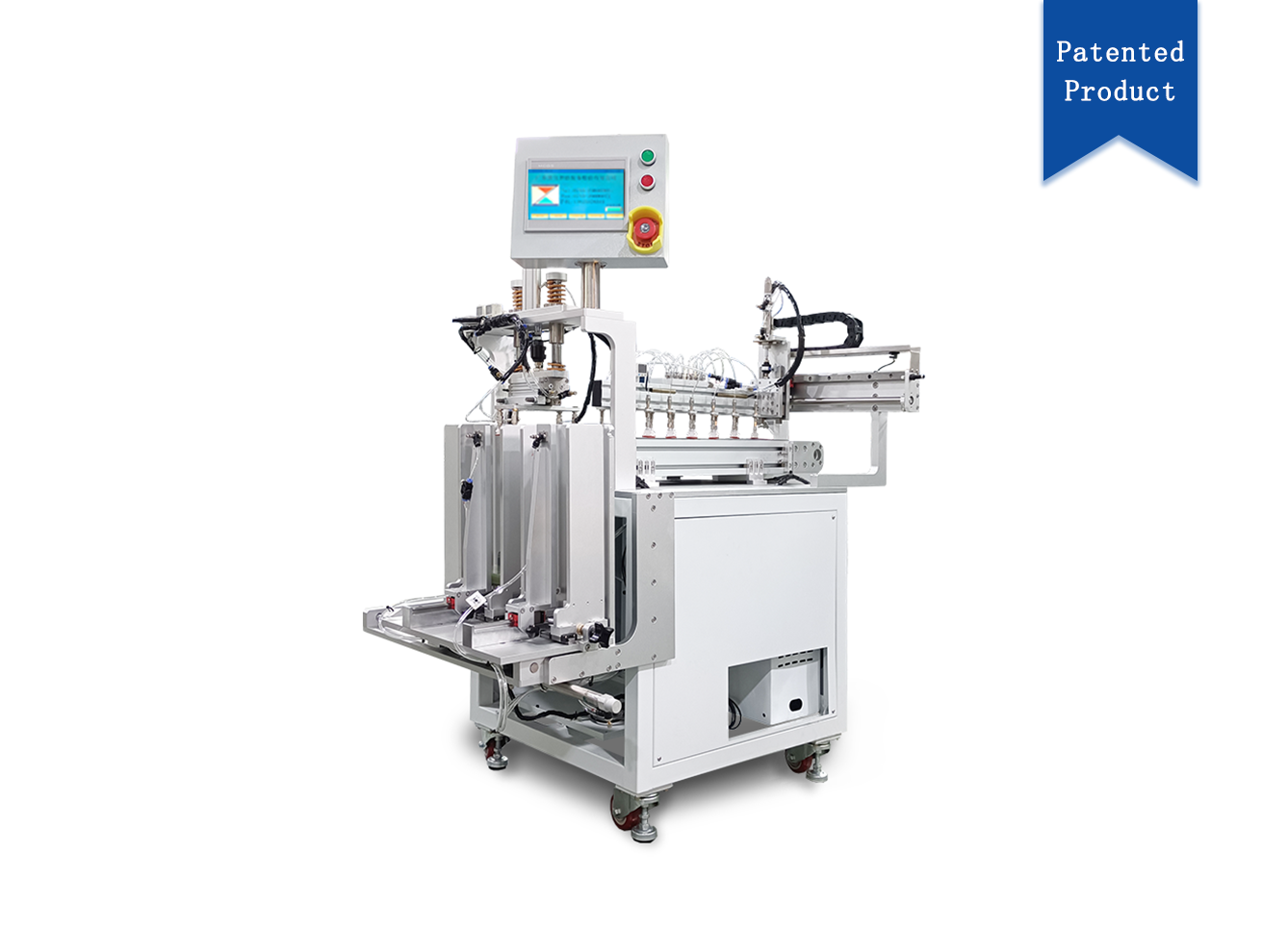

ZYSLJ-001 is an automatic loading and unloading machine for spraying equipment newly developed by Zhenyi. The equipment from the mechanical structure to the control system is independently developed by our company. The main advantages of the equipment
ZYSLJ-001 is an automatic loading and unloading machine for spraying equipment newly developed by Zhenyi. The equipment from the mechanical structure to the control system is independently developed by our company. The main advantages of the equipment are simple structure, convenient and easy operation, and automatic loading and unloading. The machine can be used separately from the automatic feeding machine and the automatic feeding machine. At the same time, it can also realize the automatic feeding and automatic feeding. All the change of the feeding machine can be completed within 10 minutes. There are two automatic feeding equipments. In the storage station, if there is no product in the storage station A, it will automatically switch to the storage station B, which also reduces labor costs and enhances the product's advantage in the market. Effectively improve the processing efficiency and processing accuracy. YSLJ-001 equipment mainly processes 4-7 inch flat 3D and 4D curved surfaces of the mobile phone protective film, which can be applied. If the product exceeds this size, it needs to be redesigned.
The main mechanism of the equipment is that the feeding machine has a double-station material storage mechanism, a motor feeding mechanism, a double-station rotary reclaiming mechanism, a swing sheet assembly line and a 7-station feeding mechanism. Equipped with a material sensor, the blanking machine has an automatic suction and unloading mechanism, and a blanking line (the blanking line can be installed directly with a frame), with a man-machine interface
Both the loading and unloading machines can be operated in person and machine, or they can be separated and operated separately, which improves the operability of the operator and also dissolves the operation mode of the equipment.
Manual loading and unloading are compared with automatic loading and unloading machines. Both loading and unloading of a spraying machine require manual operation, so one machine must be equipped with two people, and the personnel need wages to manage various expenses, and the labor investment is also long-term. , The equipment is different, the investment of the equipment is a one-time maintenance and the latter is also lower than the labor cost.
The working process of the feeding machine: manual discharging-press to start-automatic lifting of the feeding station-double-station reclaiming mechanism to take the material-placing on the assembly line-full of 7 products-the feeding mechanism to take the product from the assembly line -Put on the processing equipment-Circulate in this way-The feeder senses the product on the processing equipment
