AF-7600 is a highly cost-effective plasma spray coating machine developed by our company for the market which integrates cleaning and spray coating. Using plasma spray gun to clean the surface of glass and other ob

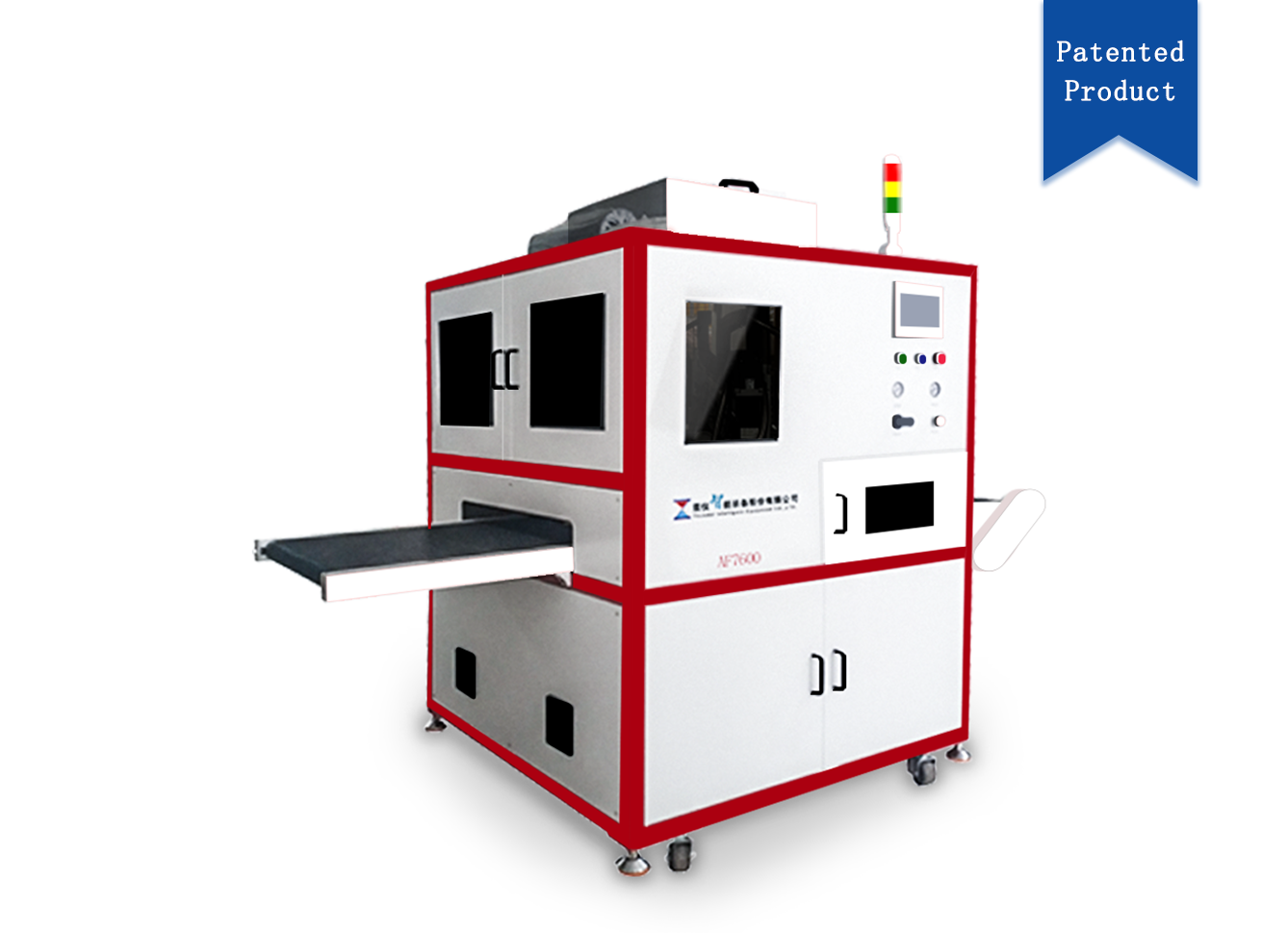

AF-7600 is a highly cost-effective plasma spray coating machine developed by our company for the market, which integrates cleaning and spray coating. Using plasma spray gun to clean the surface of glass and other objects, and nano spray gun AS coating two process production equipment, thereby changing the surface energy of the product, activating the surface of the material, after the coating AS nano coating has oil and water resistance, and the surface of the material is repellent. Water, easy to clean function. AF-7600 Plasma Spray Coating Equipment This equipment has a simplified appearance and saves space; it adopts a fully automatic control system, humanized operation and stable performance.
Features
1. Change the surface energy of the product and activate the surface of the material.
2. The coated AS nano coating has oil and water resistance
3. The surface of the material is water repellent and easy to clean.
4. Our company provides advanced production technology, high efficiency, yield rate>=98%.
5. Plasma treatment system is stable, long life, 1 year warranty (patented product)
6. AS spray gun atomization is thin and adjustable, saving fuel.
7. The fully automatic control system is user-friendly and easy to use.
New features
1. The frame square is enlarged to 40*40, the overall appearance is more atmospheric
2. Increase heating and dehumidification function, maintain the temperature and humidity of the spraying area, reduce water mist, increase the adhesion of the potion and glass, and improve the yield rate
3. Increase the gantry closed structure of the spray area, effectively reduce the area space, and increase the effective and continuous control of constant temperature and humidity at the required temperature and humidity
4. Replace the middle partition with double mirror stainless steel 201, which is corrosion resistant, acid and alkali resistant, and easy to clean.
1. Power supply: AC220/50HZ
Equipment size: L2508*W1260*H1850mm
Weight: about 600KG
Total power: 3.5KW
Conveyor line speed: 0-50mm/s adjustable
Control system: PLC+touch screen
Nozzle: 0.3mm caliber
Plasma machine: 1000W/50mm diameter
Teflon assembly line: 2500*600mm
