Dow corning CN8760 potting glue is a bisection conductive glue, mixed with 1:1 ratio, dark grey, and the mixture is 2850cps.CN8760 filling adhesive has good heat conduction and reworking, suitable for the PC, ABS, PVC and other materials and metal panels, which can be solidified at room temperature and can be heated and solidified.CN8760 potting adhesives do not produce any by-products during solidification. The flame resistance of glue conforms to the UL 94 V0 standard.
Product features
Easy to mix, easy to operate
Compatibility, it is not corrosive to metal
The selection of LED and assembly processes
Application scenarios
CN8760 pouring sealant is mainly used in LED power supply, the panel of the potting, protect the LED products from high temperature and extreme weather, thermal cycle, mechanical shock, vibration, mold damage, dirt and other bad conditions.
CN8760 pouring sealant has the stable dielectric insulation, is an effective barrier to prevent the pollution of the environment, can in a large range of temperature and humidity at the same time avoid the stress caused by shock and vibration.
This LED thermal sealant can provide excellent protection for sophisticated and demanding LED products.

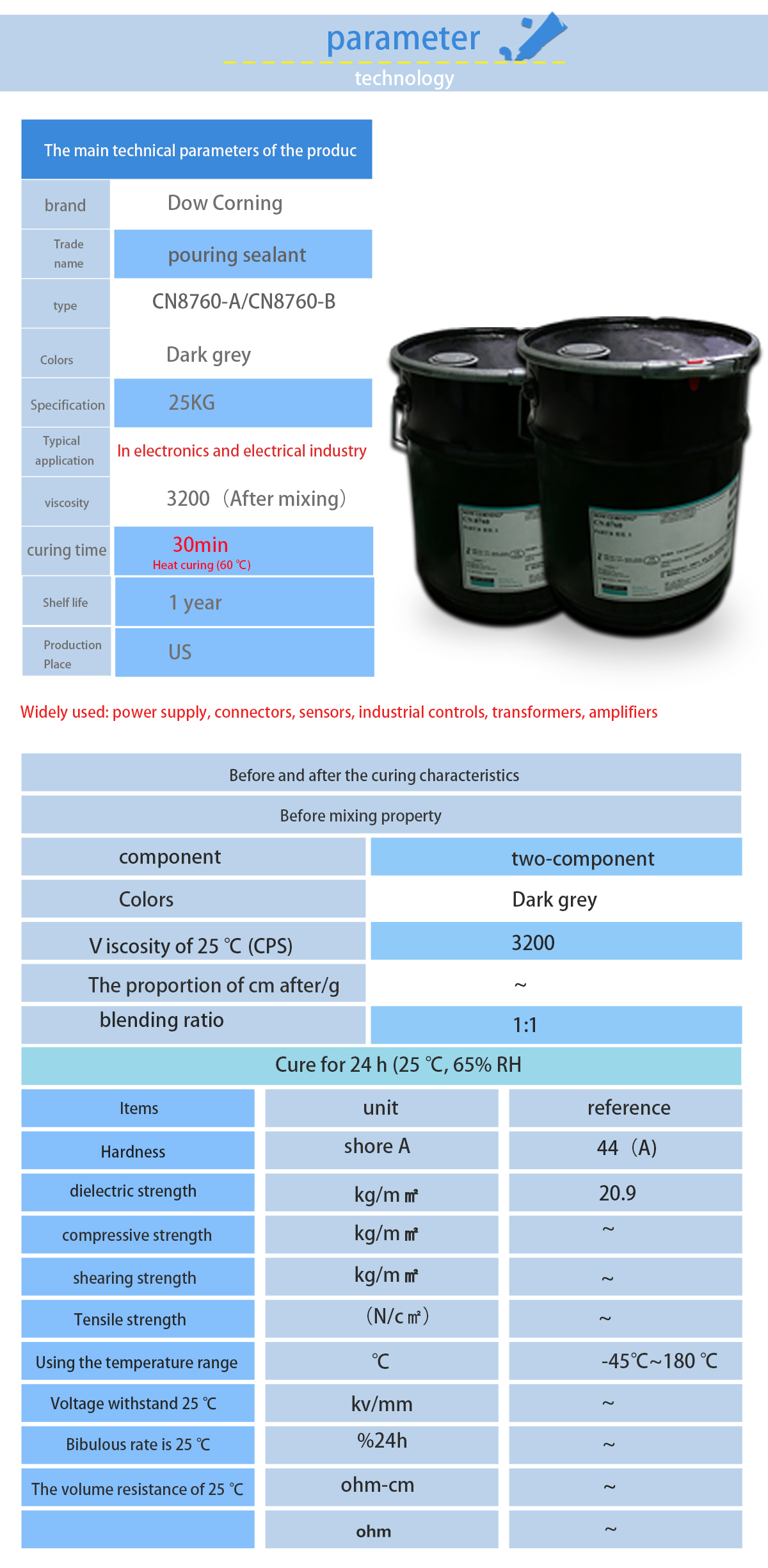

The performance parameters

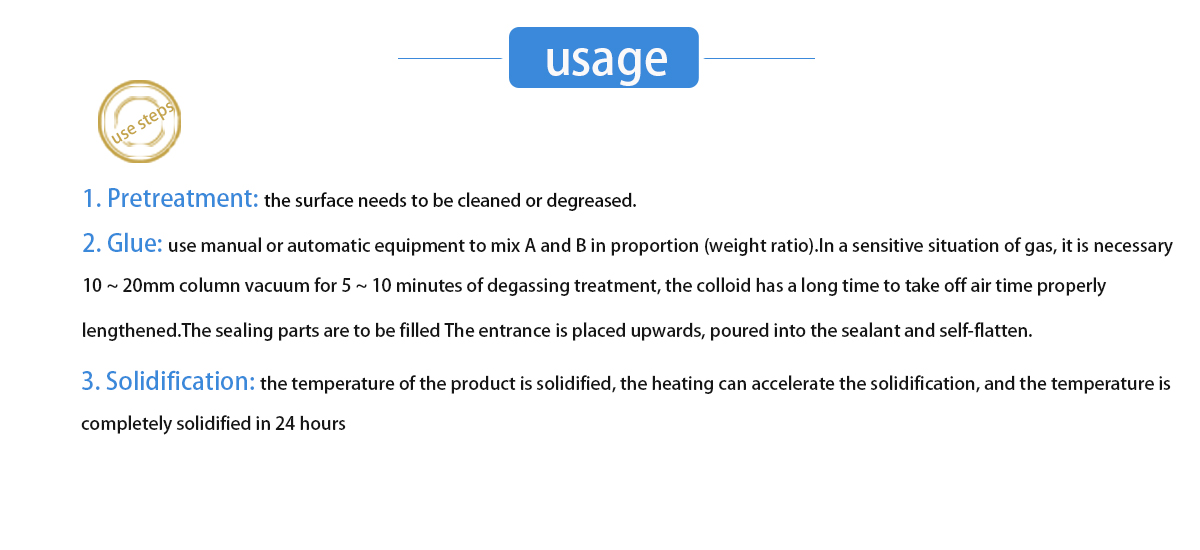

Method of use
Pretreatment: the surface of the irrigation should be cleaned or degreased.
Glue: use manual or automatic equipment to mix A and B in proportion (weight ratio).
In the case of the gas mixing, it is necessary to take 5-10 minutes of degassing in the vacuum under the 10-20mm column, and the time to take off the gas should be extended.
Place the sealing parts to the top and place them in the top, and then pour in the sealant and self-flush.
Solidification: the temperature of the product is solidified, the heating can accelerate the solidification, and the temperature is completely solidified in 24 hours.
Professional adhesive technology solution please click for consultation
